Bradford PIR Boards - Thermal PIR

The advanced PIR formula of Bradford PIR Boards achieves high R-Value performance in a thin, slimline, rigid board profile and is approved for use in specific commercial building applications such as concrete soffits and concrete wall systems.

Bradford has insulation technical experts located around Australia to assist in the correct use of these products. Please call our Bradford DesignSmart technical team on 1800 354 044 or email your enquiry to

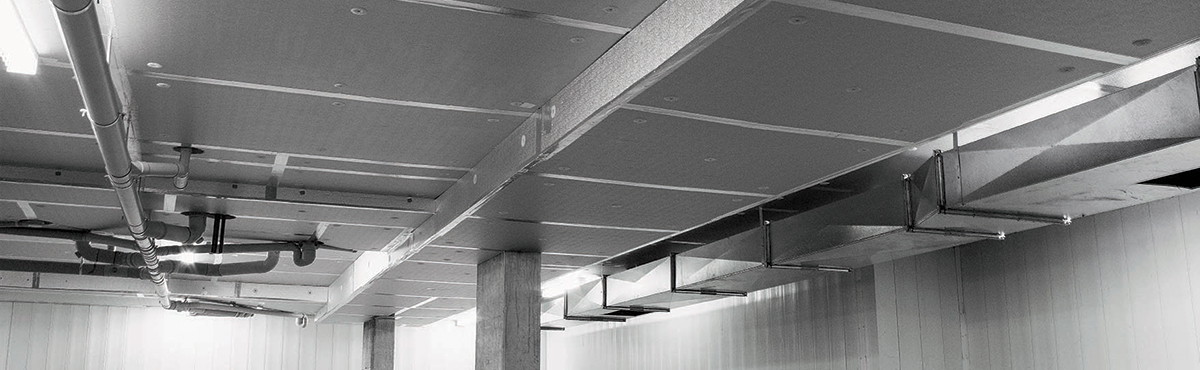

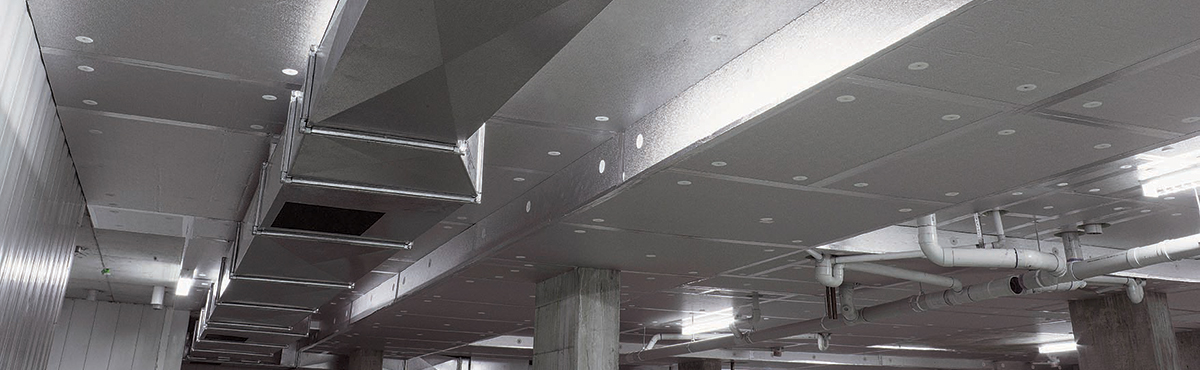

Concrete Soffit

Bradford PIR Boards are high performance building insulation boards that achieve significant thermal performance in a slimline, rigid board profile.

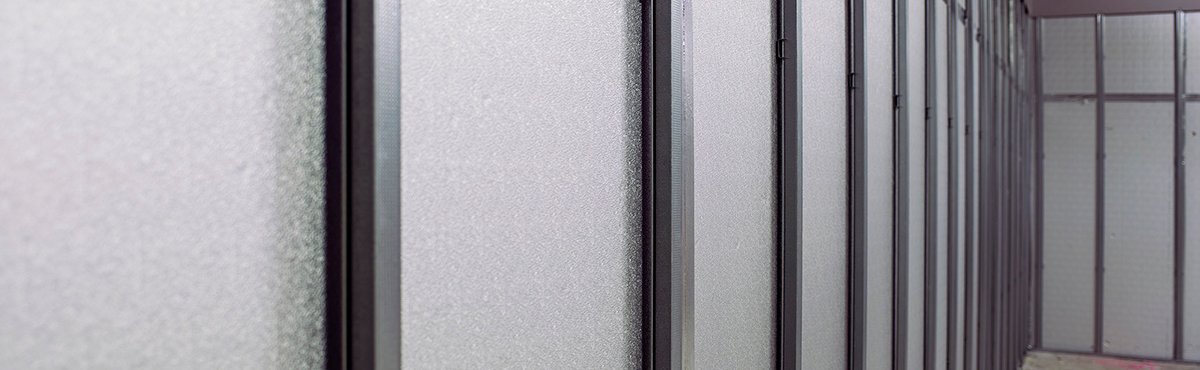

The product is made from an advanced thermoset polyisocyanurate (PIR) foam which is sandwiched between two layers of embossed aluminium foil facings. Its high thermal performance, slimline profile and high compressive strength, allows it to be efficiently designed into a building as a continuous thermal barrier across concrete soffits and concrete walls.

Product Information

Fire Hazard Properties NCC Group number when tested in accordance with AS ISO 9705 - Annex G.1, 3 x walls and ceiling installation • Group Number of 2
• SMOGRARC <100 m2 /s2 x 1000 for all thicknesses up to 60mm
• For installations requiring Group Number and SMOGRARC ratings, install as per installation guide with tape and 7 plastic insulation fasteners.
When tested in accordance with AS/NZS 1530.3 • Ignitability: 0
• Spread of flame: 0
• Heat Evolved: 0
• Smoke Developed: 0-1
Maximum Service Temperature 200°C
Volatile Organic Compound (VOC) and Formaldehyde Emissions When tested in accordance with California Specification CA 01350 • VOC <0.01 mg/m3
• Formaldehyde 6 µg/m3
Declared Thermal Conductivity Calculated in accordance with AS/NZS 4859.2 • 0.023 W/m.K at 23°C (25 - 39mm)
• 0.021 W/m.K at 23°C (40 - 60mm)
Emissivity When tested in accordance with ASTM E 408 ≤0.05 (foil facing)
