SpacerX Roof Spacer System
Fastest Roof Spacer for Concealed Fixed Roofs

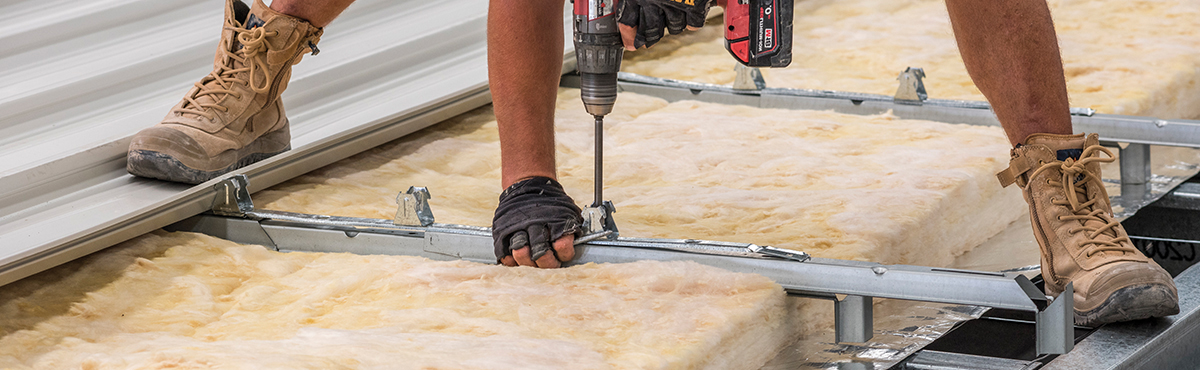

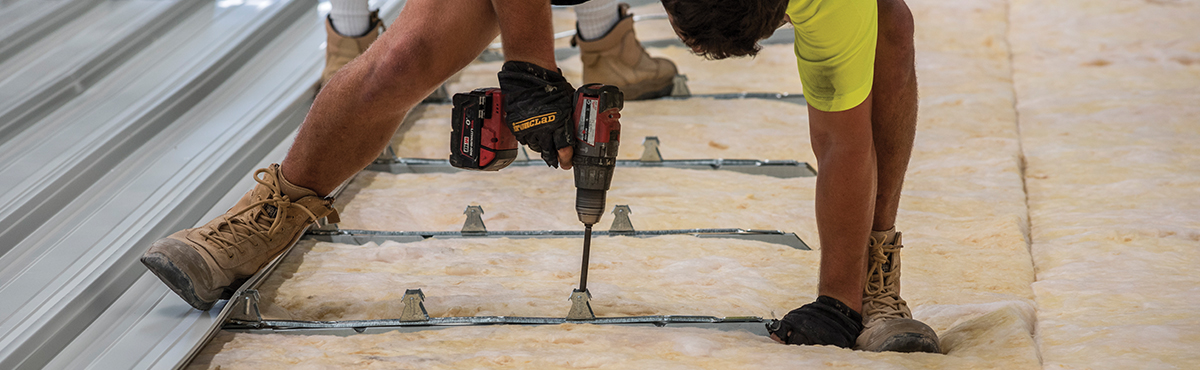

Fasten clip and spacer directly to the purlin with only 3 screws
SpacerX Roof Spacer System
Fast Start and Fast Finish
Custom designed Start Blocks that can be quickly lined up and aligned to the roof sheet line to start. Just over-lap to finish, no need to shorten spacers with a grinder to finish the roof.
SpacerX Roof Spacer System

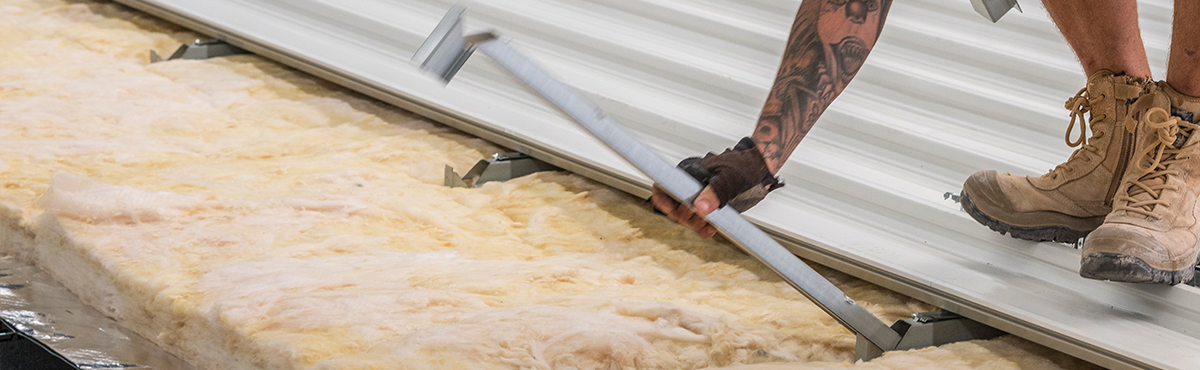

Quickly Connects and Self-Aligns
No clipping or locking required to securely and quickly connect spacer bars, and SpacerX bars will always self-align.
SpacerX Roof Spacer System
Fastest Roof Spacer for Concealed Fixed Roofs
Fasten clip and spacer directly to the purlin with only 3 screws
SpacerX Roof Spacer System
Fast Start and Fast Finish
Custom designed Start Blocks that can be quickly lined up and aligned to the roof sheet line to start. Just over-lap to finish, no need to shorten spacers with a grinder to finish the roof.
SpacerX Roof Spacer System
Quickly Connects and Self-Aligns
No clipping or locking required to securely and quickly connect spacer bars, and SpacerX bars will always self-align.
SpacerX Roof Spacer System
Bradford SpacerX is a patented roof spacer system for concealed fixed roofs. SpacerX improves speed of construction by allowing the spacer and the concealed roof clip to be assembled with only 3 screws per 700mm bar (screws not included).
Suitable for non-cyclonic commercial roofing applications, SpacerX is available in 4 sizes; 40mm, 60mm, 80mm and 120mm to suit the full range of Anticon roofing blankets to help achieve the required BCA total roof system R-Value. SpacerX is sold as an easy-to-carry pack of 10 with no cardboard packaging waste.
See why SpacerX is the fastest roof spacer system
- Fastest Roof Spacer for Concealed Fixed Roofs
- Which Concealed Fixed Roof clips can I use
- Installation time comparison
-
Ordering information
SpacerX Product Details - Pack
SpacerX Height (mm) Application To suit Anticon Length per bar (mm) Qty per Pack Lineal meters per Pack Weight per Pack (kg) Product code 40 Non-Cyclonic* Anticon 60 700 10 7 9.3 176897 60 Non-Cyclonic* Anticon 80 700 10 7 9.6 176898 80 Non-Cyclonic* Anticon 100 / 100HP / 110 700 10 7 9.8 176899 120 Non-Cyclonic* Anticon 130 / 140 / 145 700 10 7 10.2 176900 * Please contact Bradford for load tables.
SpacerX Product Details - Pallet
SpacerX Height (mm) Number of packs per full pallet Total pallet weight^ (kg) Total lineal metres per pallet 40 100 960 700 60 100 985 700 80 90 912 630 120 90 948 630 * Please contact Bradford for load tables.
^ Total weight - includes pallet weight & packaging – approximately 30kgSpacerX start blocks
SpacerX Start Blocks are required to start the first SpacerX bar. One start block is required per purlin run. Each start block requires 2 tek screws to be secured, i.e. (12-14 x 30mm tek screws).
Start Block Height (mm) Application To suit SpacerX Height (mm) Qty per Ctn Weight per Carton (kg) Product code 40 Non-Cyclonic* 40 10 0.6 177185 60 Non-Cyclonic* 60 10 1.0 177186 80 Non-Cyclonic* 80 10 1.4 177187 120 Non-Cyclonic* 120 10 2.3 177188 * Please contact Bradford for load tables.
Fasteners recommendation
SpacerX Height (mm) Minimum fastener length† (mm) No. of Fasteners per spacer & clip combined Fastener Gauge 40 68 3 #12 to #14 60 90 3 #14 80 110 3 #14 120 150 3 #14 † Measured from under the head to the tip of the drill point
Fastener coating system should meet AS 3566 Class 3 or AS 3566 Class 4, please refer to roof cladding manufacturers’ requirements for more information. SpacerX system is not recommended for use with timber construction.
